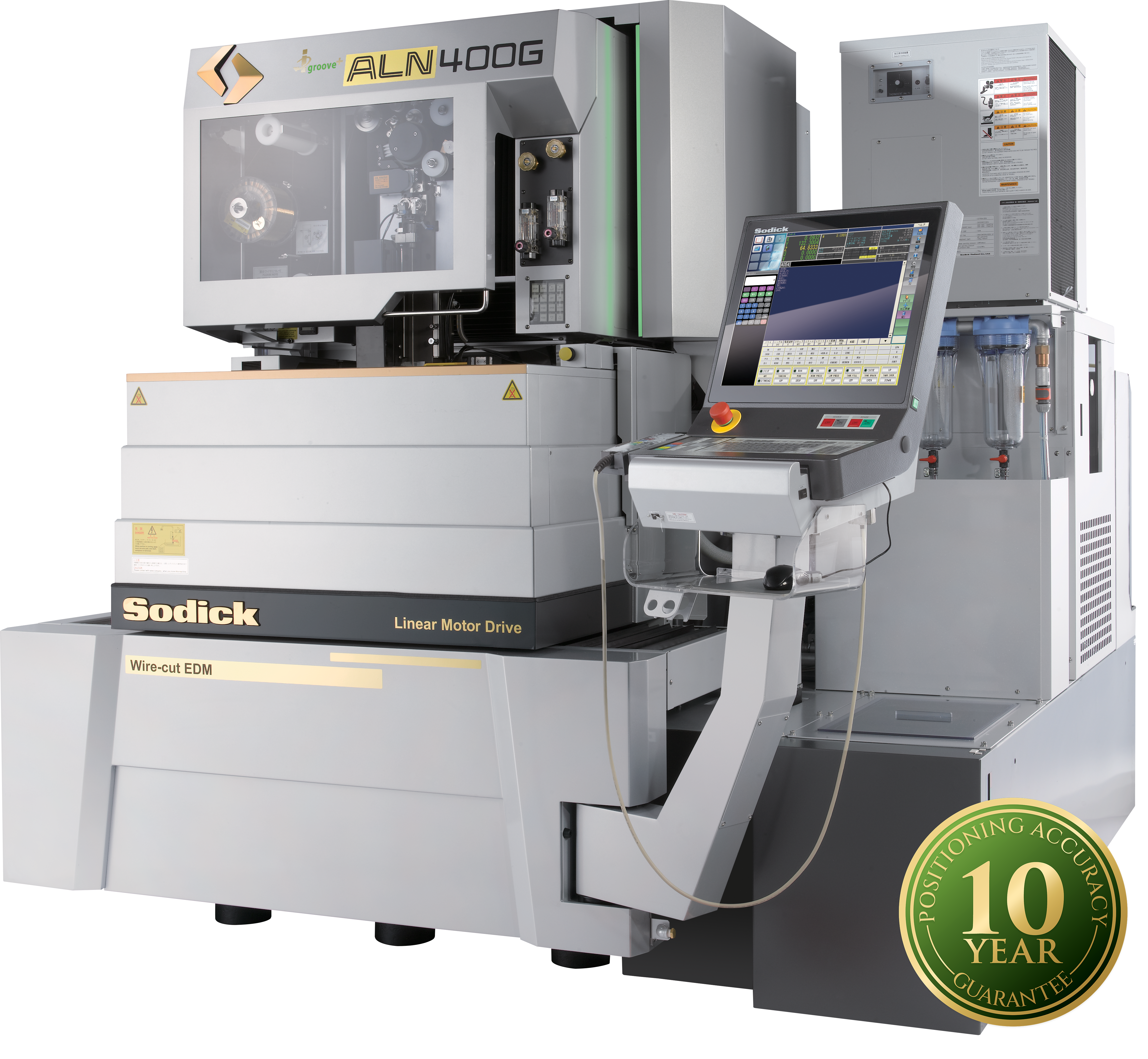

ALN400G iGE+

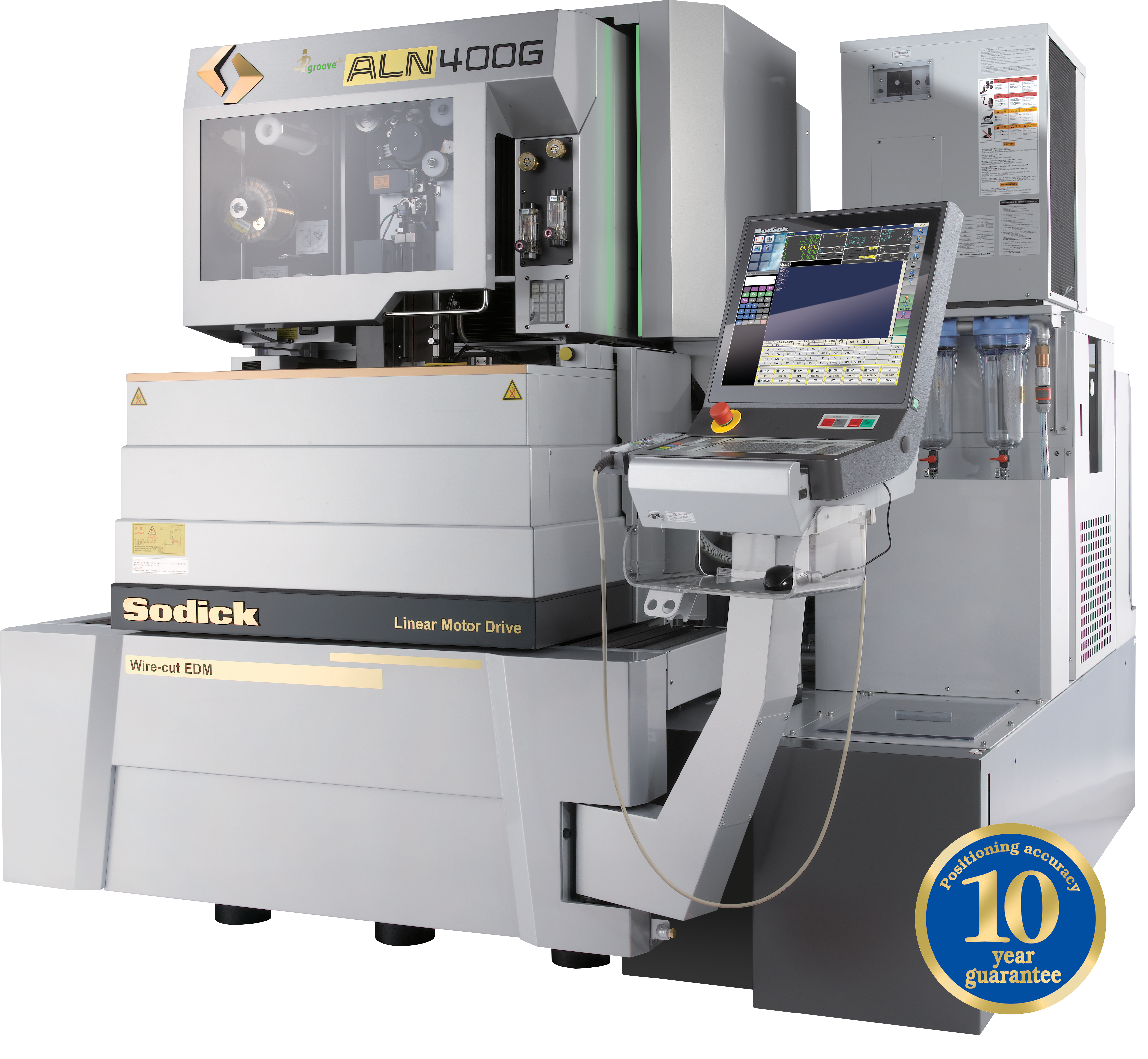

The ALN400G iGE+ combines Sodick’s most advanced generator with a more responsive, user-optimized control.

X-Travel: 15.75″ (400 mm)
Y-Travel: 11.81″ (300 mm)
Z-Travel: 9.84” (250 mm)


The ALN400G iGE+, a flat rigid linear motor driven high-performance Wire EDM machine, improves cutting speed and precision. How? By incorporating Sodick’s next-generation Smart Pulse Wire control with the Smart Pulse Generator. The ALN also streamlines the control design, combining the best functions of both tablet interface and classic interface into a highly functional work display, improving processing responsiveness.


  • 10-Year Positioning Guarantee
  • Rigid Linear Motor Drives (X, Y, U, and V axes)
  • Absolute Linear Scale (X, Y, U, and V)
  • 2 Year Warranty Standard
  • SPW (Smart Pulse Wire Control)
  • Tablet Style Control Features
  • 19″ LCD Touch Panel Screen
  • Smart Pulse Generator
  • Digital Pika-W Plus – Super Finishing Circuit
  • Advanced Step Machining
  • High Precision Positioning Sensor FT-II
  • Ceramic Work-Zone
  • FJ (Fixed Jet) High Speed AWT
  • High Quality Design
  • Rigid Cast Construction
  • Stable Platform and Environment
  • 3 Sided Rise/Fall Worktank
  • Intelligent Q³vic EDW – Automatic Programming System
  • K-SMC Motion Controller
  • Barrelless Control II
  • TMP II Surface Finishing Circuit
  • Three Part Filtration System
  • Slide Plate Lubrication
  • Advanced Corner Control
  • Energy Saving Circuit
  • Dielectric Cooling Unit
  • Heart NC – CAD-CAM System (on-board)
  • Ion-Exchange Unit
  • Windows Operating System
  • Automatic Wire Tension Servo Control System
  • Automatic Voltage Regulator
  • Four Sided Clamping Table
  • Z-Axis Automatic Fluid Level Control


  • SPW-E Control – Up to 8 Axis Simultaneous Control – Required for Multi-Axis Simultaneous “Turn and Burn” Capability
  • Jumbo Wire Feeder 110 lbs (50 kg)
  • Integrated ‘Jumbo’ Wire Feeder 44 lbs (20 kg)
  • L-Cut Wire Chopper – Processes Wire for Convenient Storage
  • HTP Circuit – High Voltage Circuit that Improves Machining Efficiency when Cutting PCD and Similar Materials
  • Taper Flex – Hardware and Software to enable the Machining of Precision Taper Angles (Up to 22 and 45 Degree Options Available, Contact Sodick for Details)
  • UPS (Uniterrupted Power Supply)
  • SodickCare +2 or +4 Extended Warranty
  • PCD Tool Cutting Package with ProfDia.


X - Axis Travel 15.75" (400 mm)
Y - Axis Travel 11.81” (300 mm)
Z - Axis Travel 9.84” (250 mm)
U, V - Axis Travel 5.91” x 5.91” (150 x 150 mm)
Wire Diameter Range (min ~ max) 0.002” ~ 0.012” (0.05 ~ 0.30 mm) (With Available Options)
Work Tank Dimensions W x D 33.45” x 24.01” (850 x 610 mm)
Max. Workpiece Weight 1,102 lbs (500 kg)
Distance from Floor to Table Top 39.17” (995 mm)
Machine Tool Dimensions W x D x H 86.22" x 95.47" x86.81" (2190 x 2425 x 2205 mm)
Machine Weight 7,385 lbs (3,350 kg)

Rigid Linear Motor Drives

Sodick’s ALN400G iGE+ flat rigid linear motor driven, high precision Wire EDM machine features new user-friendly EDM technology which further enhances productivity and EDM precision. The machine’s flat rigid linear motor axes drives are coupled with glass scales on the X, Y, U, and V axes which ensure precision cutting and positioning accuracy. Sodick’s X, Y, U, and V flat rigid linear motor drives have no backlash and are backed by Sodick’s 10-Year Positioning Accuracy Guarantee. Sodick currently manufactures and delivers only flat rigid linear motor driven machines; proving the unrivaled reliability of Sodick’s own flat rigid linear motor technology. Sodick’s flat rigid linear motors have the optimum flat design. The machine castings support the flat rigid linear motor to achieve ideal linear performance, the ultimate design for precision machining.

CNC Smart Control – SPW

The new Sodick Control SPW (Smart Pulse Wire) has many attractive features, from the use of the industry standard Windows 7 operating system, to an enhanced, 19 inch horizontal TFT multi-touch screen. The ALN control design streamlines the former tablet and classic control modes into a single work screen with easy-access functions. The streamlined design also improves control processing speed, for a highly responsive user experience.

The NC programs are supported with 2D and 3D graphics. Maintenance screens show the status of the machine and remote access is possible for maintenance and supervision.

Smart Pulse Generator

The Smart Pulse Generator reduces the number of cuts necessary to achieve the required accuracy and surface finish. This reduction in time translates directly into a financial advantage.

Intelligent Q³vic

Intelligent Q³vic EDW technology allows the importation of 3D CAD files and is standard with the ALN-G Series. This automatic programming system detects the profile of a workpiece that can be machined with Wire EDM and extracts the machining contour. Significant savings in programming hours are possible thanks to this advanced software.

Sodick Motion Controller

The Sodick Motion Controller (K-SMC), accurately controls the high-speed and precise flat rigid linear motor drive movements through commands from the NC unit. The K-SMC was heavily researched and developed to bring about new technical innovations to electrical discharge machining. Developed in Silicon Valley, CA, the K-SMC accurately controls high-speeds, rapid acceleration and precise positioning.


The ALN-G Series features energy-saving designs and technologies. Compared to conventional EDMs, the Sodick Wire EDM Machine Range can reduce average energy consumption by up to 60%.

Fixed Jet High Speed Automatic Wire Threader

This AWT system allows submerged and non-submerged threading. Combining thermal wire cut for a straighter wire and new water-jet function, the reliability of the Sodick AWT system has been further improved. The exclusive use of closed guides on the ALN400G iGE+ in combination with the FJ AWT further increases productivity.

3-Sided Rise/Fall Worktank

The 3-sided rise/fall worktank ensures a large set-up space and ergonomic accessibility. Since 3 sides slide down, the machine requires less operating space. The no-drip feature insures a clean shop floor, maintaining a safe work environment.

The fluid level is automatically adjusted according to the workpiece thickness and the operator can easily check machining progress even on thin workpieces because the slide tank can be stopped in intermediate positions while machining. The interior of the tank is made from stainless steel for quick maintenance (unpainted).

10 Year Accuracy Positioning Guarantee

At Sodick, we believe in our product. This is why we offer a 10-Year Positioning Accuracy Guarantee on our flat rigid linear motor driven Wire and Sinker EDMs. We guarantee that you will not lose any accuracy within the flat rigid linear motor drives. Learn more at

iGroove+ Technology

Our patented wire rotation technology, iGroove+, increases surface quality and accuracy while minimizing wire consumption by up to 39%.

Thermal Commit (TH COM)

Through sensing, the temperature of each component of the machine is precisely corrected and the Thermal Commit (TH COM) function, which provides various diagnostic functions, minimizes thermal displacement due to temperature changes in the installation environment and during high-speed driving.

Step-cut Functionality

It permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.


In cutting precision fitting parts with a 3.94″ (100 mm) thickness, Sodick has achieved the following; improved cutting speed, reduced cutting frequency, improved part accuracy and improved surface quality. A 32% cutting time reduction has been achieved using the ALN400G.

Material: SKD11
Thickness: 3.94” (100 mm)
Surface Roughness: 8 RMS (.20 µmRa)
Cutting Accuracy: +/- .00012″ (3 µm)
Wire Diameter: .008” (.2 mm)
Cutting Time: 2 hours 57 minutes
