ALN800GH iGE+

Description

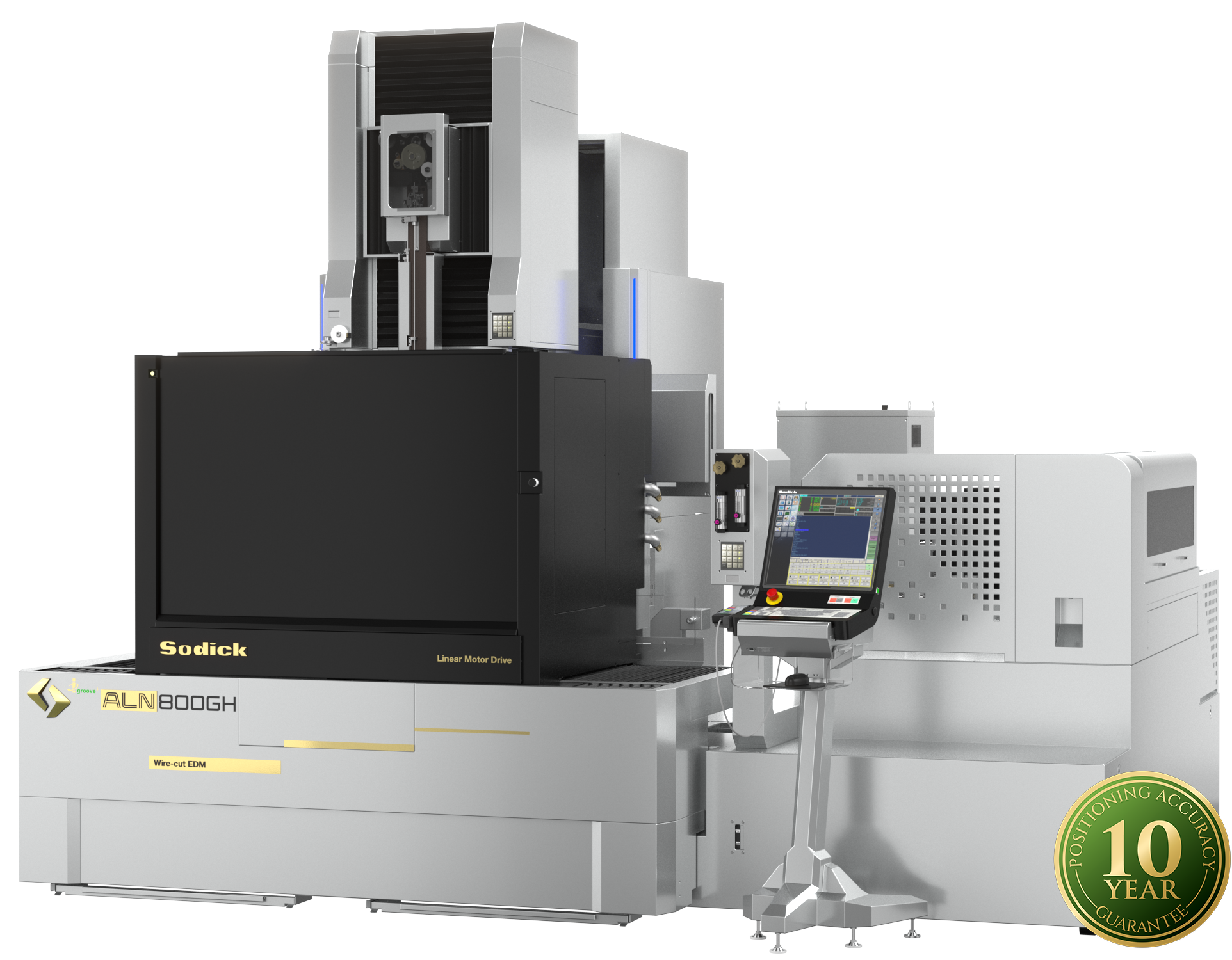

The ALN800GH iGE+, Rigid Linear Motor Driven High-Performance Wire EDM Machine incorporates Sodick’s next-generation SPW (Smart Pulse Wire) control with the Smart Pulse Generator and technologies that improve cutting speed and precision. The ALN also streamlines the control design, combining the best functions of both tablet interface and classic interface into a highly functional work display, improving processing responsiveness.

Features

10-Year Positioning Guarantee
Rigid Linear Motor Drives (X, Y, U, and V axes)
Absolute Linear Scale (X, Y, U, and V)
2 Year Warranty Standard
SPW (Smart Pulse Wire Control)
Tablet Style Control Features
19″ LCD Touch Panel Screen
Smart Pulse Generator
Digital Pika-W Plus – Super Finishing Circuit
Advanced Step Machining
High Precision Positioning Sensor FT-II
Ceramic Work-Zone
FJ (Fixed Jet) High Speed AWT
High Quality Design
Rigid Cast Construction
Stable Platform and Environment

Intelligent Q³vic EDW – Automatic Programming System
Barrelless Control II
TMP II Surface Finishing Circuit
K-SMC Motion Controller
Three Part Filtration System
Slide Plate Lubrication
Advanced Corner Control
Energy Saving Circuit
Dielectric Cooling Unit
Heart NC – CAD-CAM System (on-board)
Ion-Exchange Unit
Windows Operating System
Automatic Wire Tension Servo Control System
Automatic Voltage Regulator
Four Sided Clamping Table
Z-Axis Automatic Fluid Level Control

Options

SPW-E Control – Up to 8 Axis Simultaneous Control – Required for Multi-Axis Simultaneous “Turn and Burn” Capability
Jumbo Wire Feeder 110 lbs (50 kg)
Integrated ‘Jumbo’ Wire Feeder 44 lbs (20 kg)
L-Cut Wire Chopper – Processes Wire for Convenient Storage
HTP Circuit – High Voltage Circuit that Improves Machining Efficiency when Cutting PCD and Similar Materials

Taper Flex – Hardware and Software to enable the Machining of Precision Taper Angles (Up to 22 and 45 Degree Options Available, Contact Sodick for Details)
UPS (Uninterrupted Power Supply)
SodickCare +2 or +4 Extended Warranty
PCD Tool Cutting Package with ProfDia.

Specifications

X-Axis Travel	31.50" (800 mm)
Y-Axis Travel	23.62” (600 mm)
Z-Axis Travel	28.74" (730 mm) [Max Height 31.89" (810 mm)]
U v axis travel	7.87” x 7.87” (200 x 200 mm)
Wire diameter range min max	0.004” ~ 0.012” (0.05 ~ 0.30 mm)
Work tank dimensions w d	59.05” x 40.94” (1,500 x 1,040 mm)
Distance from Floor to Table	39.17” (995 mm)
Machine Tool Dimensions	130.31” x 132.28” x 106.10” (3,310 x 3,360 x 2,695 mm)
Machine Weight	14,550 lbs (6,600 kg)

The Sodick ALN800GH iGE+ is a high-precision Wire EDM designed to maximize productivity, accuracy, and ease of operation. Featuring advanced EDM technology and Sodick’s proprietary flat rigid linear motor drives, the machine delivers exceptional cutting performance and positioning accuracy.

The X, Y, U, and V axes are powered by flat rigid linear motors and paired with high-resolution glass scales, ensuring precise movement without backlash. This proven technology is backed by Sodick’s industry-leading 10-Year Positioning Accuracy Guarantee.

As the exclusive motion technology used across Sodick’s machine lineup, flat rigid linear motors have demonstrated unrivaled reliability in manufacturing environments worldwide. Combined with a rigid machine structure specifically engineered to support the linear motor system, the ALN800GH iGE+ provides the stability, precision, and long-term performance required for demanding Wire EDM applications.

At Sodick, we believe in our product. This is why we offer a 10-Year Positioning Accuracy Guarantee on our flat rigid linear motor driven Wire and Sinker EDMs. We guarantee that you will not lose any accuracy within the flat rigid linear motor drives.

Learn more at www.sodick.com/our-company/10-year-positioning-guarantee

Our patented wire rotation technology, iGroove+, increases surface quality and accuracy while minimizing wire consumption by up to 30%.

The Sodick Motion Controller (K-SMC), accurately controls the high-speed and precise flat rigid linear motor drive movements through commands from the NC unit. The K-SMC was heavily researched and developed to bring about new technical innovations to electrical discharge machining. Developed in Silicon Valley, CA, the K-SMC accurately controls high-speeds, rapid acceleration and precise positioning.

The new Sodick Control SPW (Smart Pulse Wire) has many attractive features, from the use of the industry standard Windows 7 operating system, to an enhanced, 19 inch horizontal TFT multi-touch screen. The ALN control design streamlines the former tablet and classic control modes into a single work screen with easy-access functions. The streamlined design also improves control processing speed, for a highly responsive user experience.

The NC programs are supported with 2D and 3D graphics. Maintenance screens show the status of the machine and remote access is possible for maintenance and supervision.

This AWT system allows submerged and non-submerged threading. Combining thermal wire cut for a straighter wire and new water-jet function, the reliability of the Sodick AWT system has been further improved. The exclusive use of closed guides on the ALN800GH iGE+ in combination with the FJ AWT further increases productivity.

The Smart Pulse Generator reduces the number of cuts necessary to achieve the required accuracy and surface finish. This reduction in time translates directly into a financial advantage.

Intelligent Q³vic EDW technology allows the importation of 3D CAD files and is standard with the ALN iGE+ Series. This automatic programming system detects the profile of a workpiece that can be machined with Wire EDM and extracts the machining contour. Significant savings in programming hours are possible thanks to this advanced software.

The ALN iGE+ Series features energy-saving designs and technologies. Compared to conventional EDMs, the Sodick Wire EDM Machine Range can reduce average energy consumption by up to 60%.

The 3-sided rise/fall worktank ensures a large set-up space and ergonomic accessibility. Since 3 sides slide down, the machine requires less operating space. The no-drip feature insures a clean shop floor, maintaining a safe work environment.

The fluid level is automatically adjusted according to the workpiece thickness and the operator can easily check machining progress even on thin workpieces because the slide tank can be stopped in intermediate positions while machining. The interior of the tank is made from stainless steel for quick maintenance (unpainted).

Through sensing, the temperature of each component of the machine is precisely corrected and the Thermal Commit (TH COM) function, which provides various diagnostic functions, minimizes thermal displacement due to temperature changes in the installation environment and during high-speed driving.

STEPCUT2 permits machining at the same speed as under standard conditions while significantly improving the accuracy and range of applications when machining shapes with rapidly changing material thickness, such as stepped shapes.

Sample

Due to the higher speeds and accuracy associated with flat rigid linear motors when machining rough cuts, the processing of fitting parts, which previously required three passes, can bow be achieved in just two. This has a 41% cutting time reduction on this sample part.
Material: SKD11 Steel (D2)
Thickness: 1.57” (40 mm)
Surface Roughness: 55 RMS (1.37 µmRa)
Cutting Accuracy: +/- .00012″ (3 µm)
Wire Diameter: .008” (.2 mm)
Cutting Time: 2 hours 57 minutes
