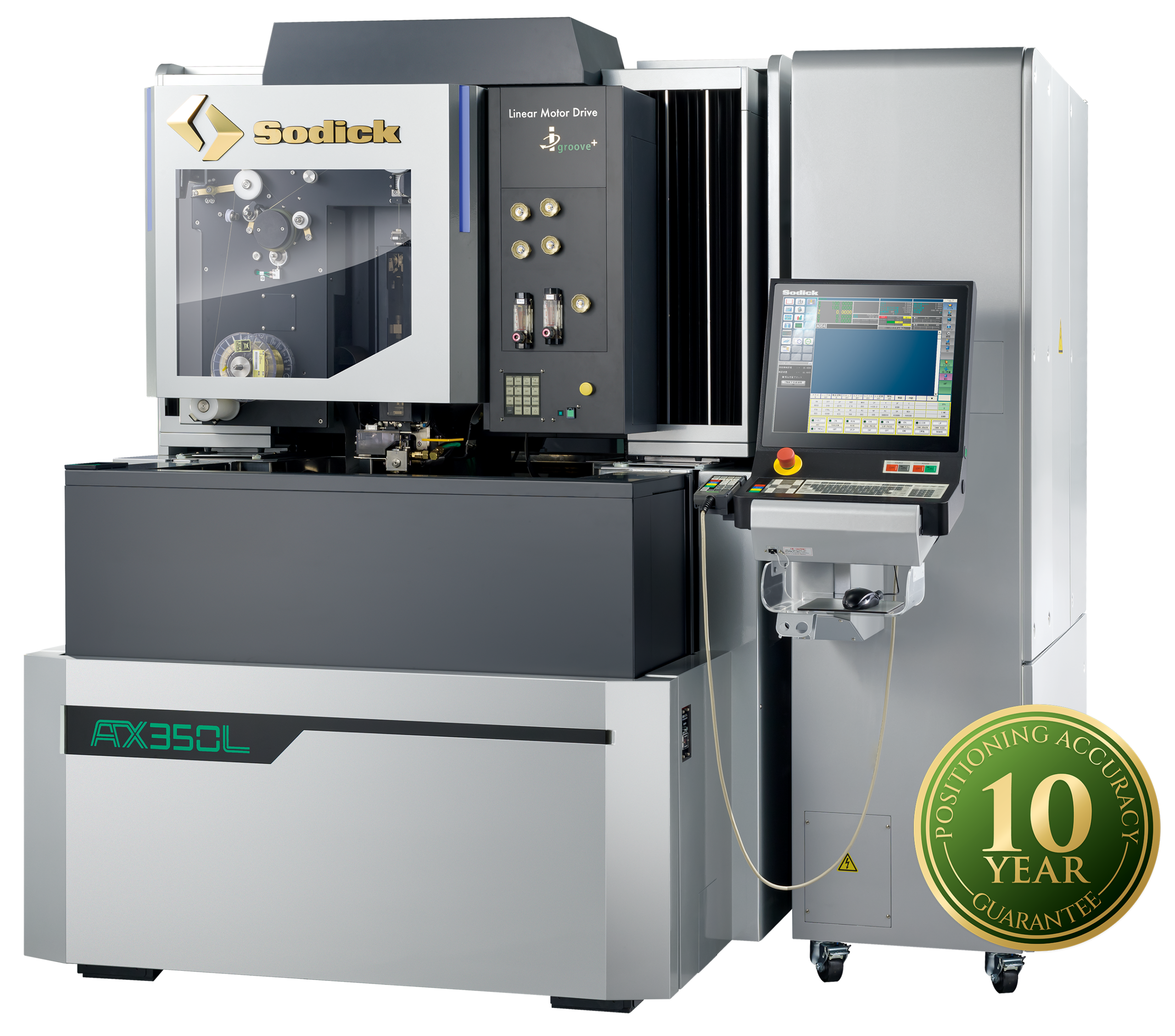

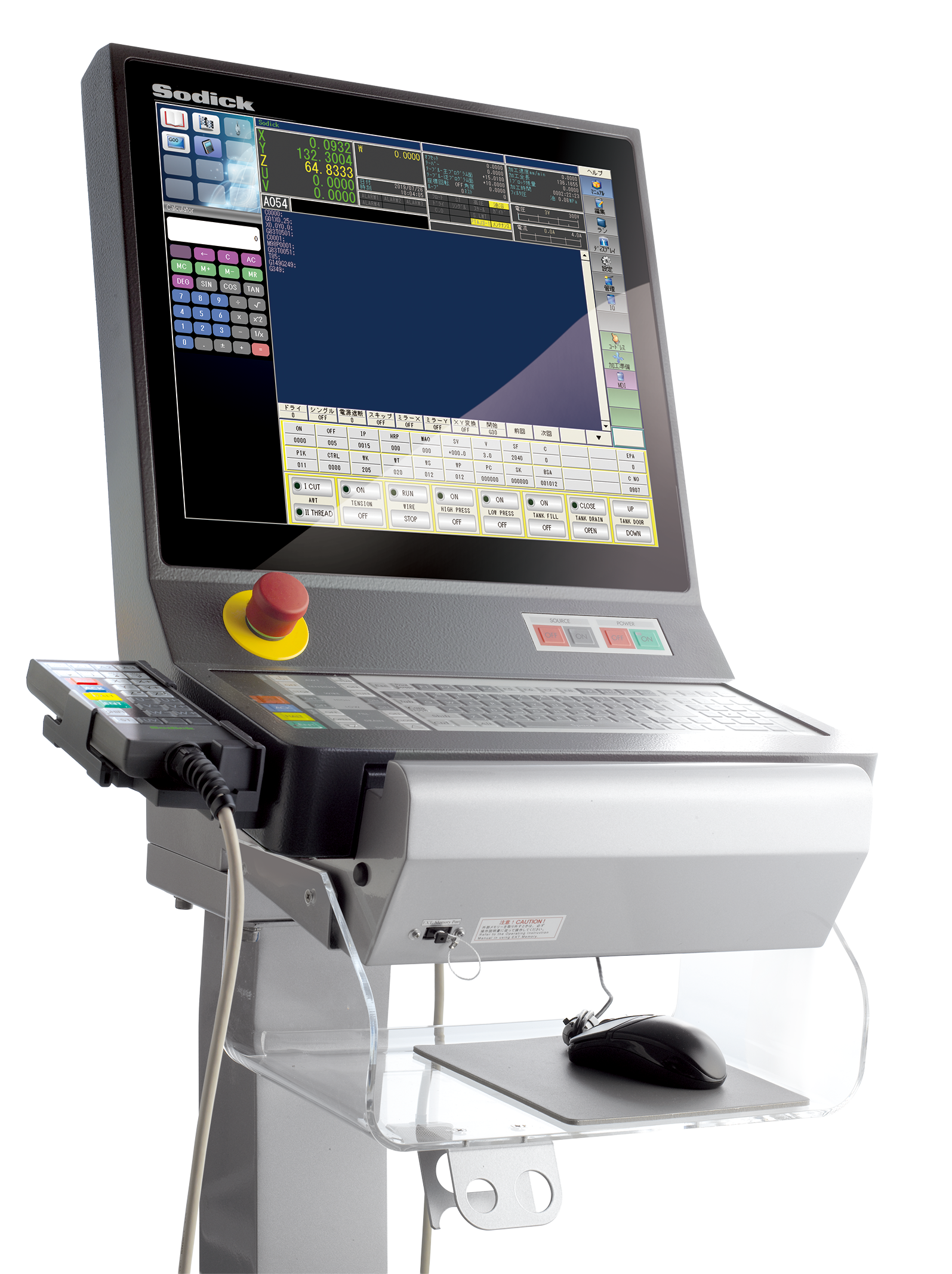

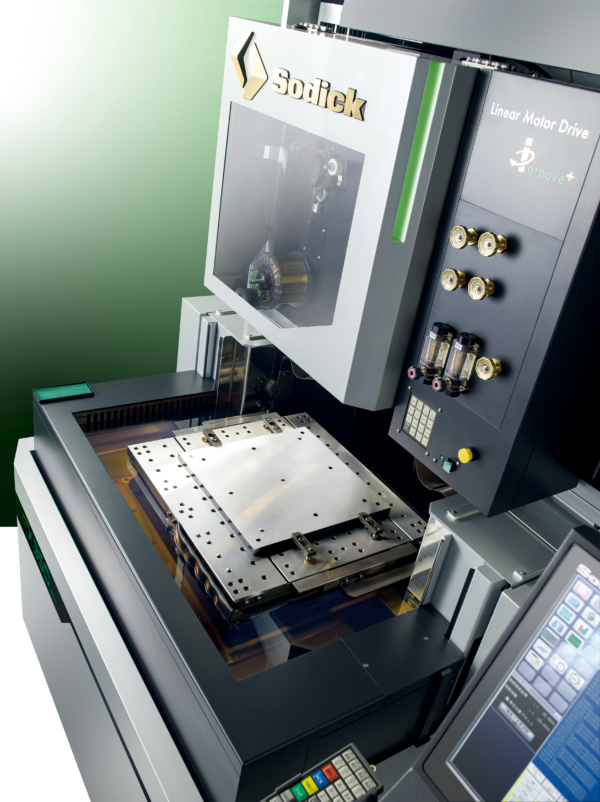

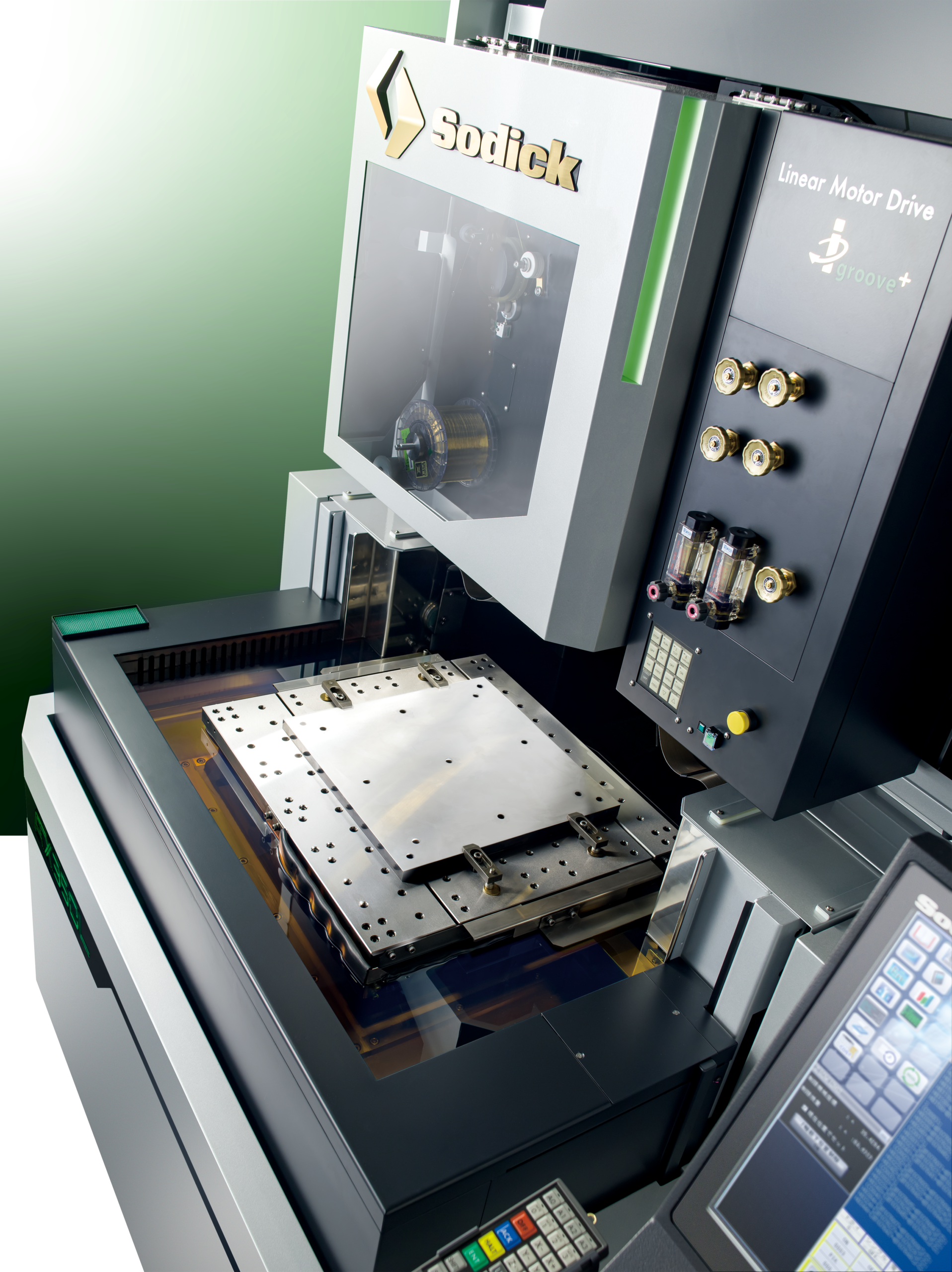

AX350L

The ultra-precision dielectric oil wire EDM for carbide machining and superior surface quality.



Specs:

X axis travel: 13.78″

Y axis travel: 13.78″

Z axis travel: 4.72″ (+3.94″)

Add to cart
Request A Quote

Description

Standard Features

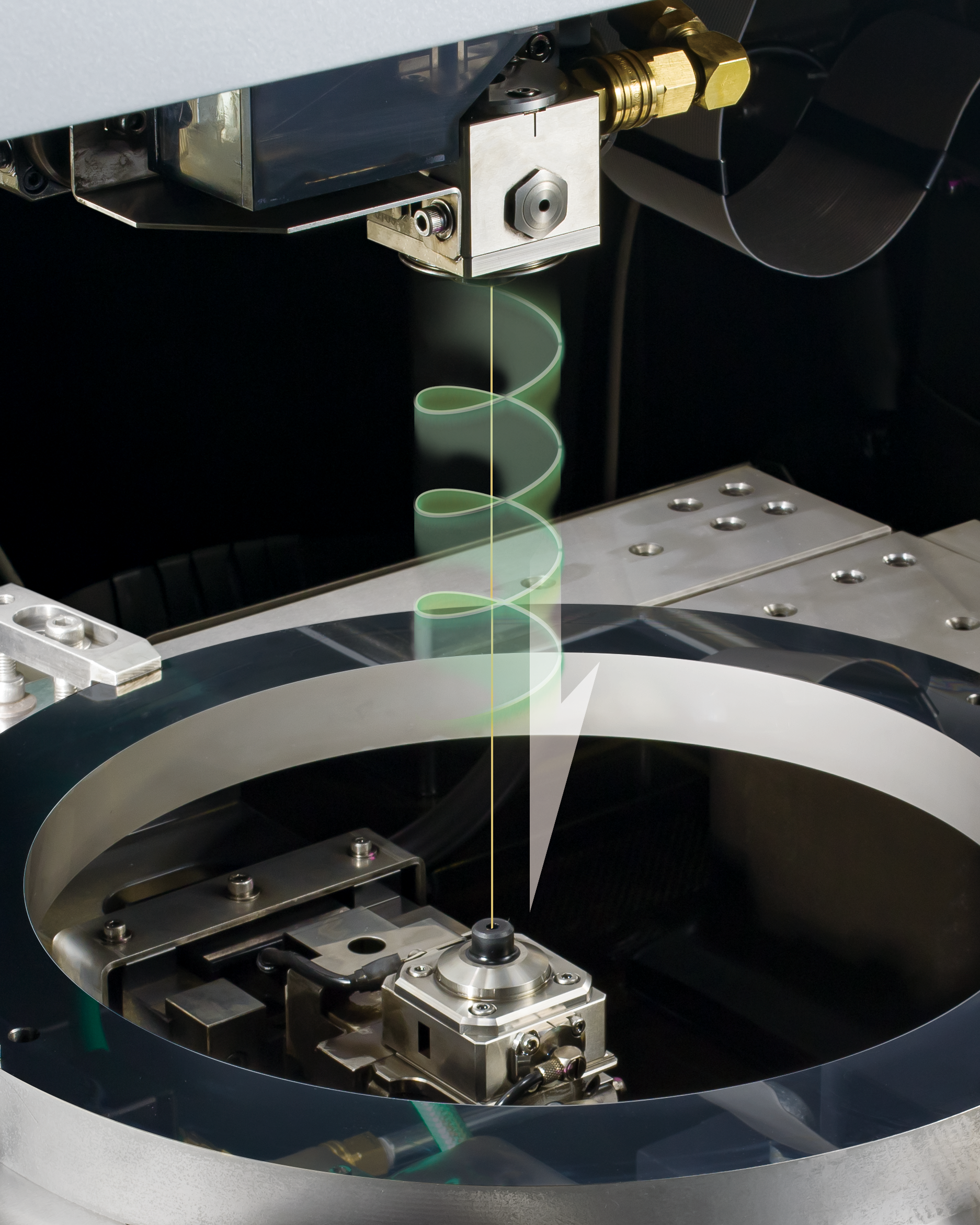

  • Automatic Wire Threading Device
  • Submerged machining capability
  • Wire diameter range: φ0.05mm ~ φ0.25mm
  • Wire tension control: 3N ~ 25N
  • Maximum wire feed speed: 250 mm/sec
  • Taper machining: ±15° (at 100mm plate thickness)
  • Maximum wire bobbin weight: 6 kg
  • Standard inverter-type dielectric cooling unit
  • Paper filter filtration system (internal pressure, 2-cylinder type)
  • Travel distances: X-350mm, Y-350mm, Z-120mm (+100mm service stroke), U×V-80×80mm
  • Distance from floor to table: 950mm

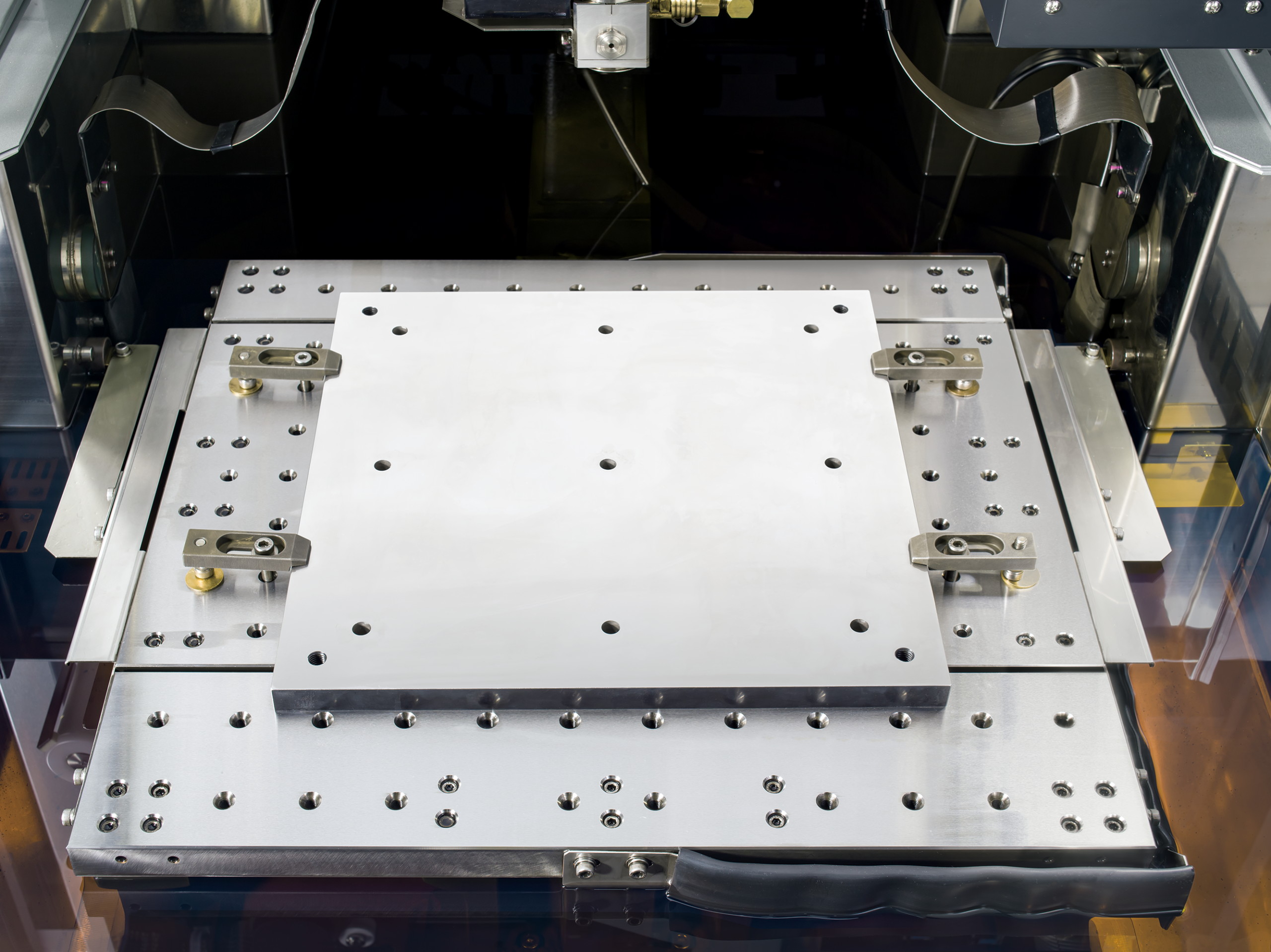

Available Options

  • Extended warranty packages
  • Additional wire feeders
  • Taper enhancement packages
  • Precision measurement systems
  • Automated loading systems

Specifications

Max Workpiece Dimension 21.26" × 19.69" × 3.94" (540 × 500 × 100 mm)
Max Weight of Workpiece 661 lbs (300 kg)
X-Axis Travel 13.78” (350 mm)
Y-Axis Travel 13.78” (350 mm)
Z-Axis Travel 4.72" (+3.94")* (120mm +100mm)
U v axis travel 3.15” x 3.15” (80 x 80 mm)
Max taper angle ±15° (at 3.94" / 100mm thickness)
Wire electrode diameter φ0.002" ~ φ0.010" (φ0.05 ~ φ0.25 mm)
Max wire feed rate mm s 590 in/min (250 mm/sec)
Wire tension n 3 ~ 25 N
Distance from Floor to Table 37.40" (950 mm)
Machine Dimensions 62.99" × 98.62" × 86.02" (1,600 × 2,505 × 2,185 mm)Body height: 84.45" (2,145mm)
Machine Installation 118.11" × 145.67" (3,000 × 3,700 mm)
Machine Weight 10,913 lbs (4,950 kg)
Air Pressure 0.5 MPa, 30 NL/min

Service tank specifications

External Dimensions (W×D×H) 61.81″ × 29.53″ × 57.09″ (1,570 × 750 × 1,450 mm)
Weight (Dry) 617 lbs (280 kg)
Dielectric Fluid EDM Oil (Class 4, Type 3 Petroleum)
Service Tank Capacity 64.7 gal (245 L)
Required Dielectric Fluid 146.6 gal (555 L)
Filtration Method Replaceable Paper Filter (Internal pressure, 2-cylinder)
Cooling Unit Standard (Inverter type)

Eliminate cobalt depletion entirely with oil dielectric technology. Unlike water-based systems that cause corrosion and electrolysis in carbide materials, the AX350L delivers higher quality carbide parts with longer tool life and more predictable outcomes. Your carbide workpieces can remain submerged indefinitely without degradation, perfect for precision die work.

Enable true lights-out machining for nights and weekends. Oil dielectric allows workpieces to remain submerged for days or weeks without corrosion concerns, unlike water dielectric that requires immediate workpiece removal. Ideal for shops maximizing machine utilization during unmanned hours.

Achieve tighter tolerances with smaller discharge gaps inherent to oil dielectric machining. Minimal overburn reduces secondary operations and scrap rates while delivering the precision required for medical devices, aerospace components, and high-precision dies. Less rework means lower costs and faster delivery.

Produce superior surface finishes in fewer passes, reducing cycle times while meeting stringent finish requirements. Oil dielectric’s lower spark intensity creates finer surface textures ideal for precision dies, molds, and components requiring minimal post-processing. Get the results you need without additional finishing operations.

How the AX350L compares

This Machine
Features
Sodick AX350L (Oil)
Sodick EXC100L+ (Oil)
Other Oil EDMs (Other Brands)
Dielectric Type
Oil
Oil
Oil
X-Axis Travel
13.78" (350mm)
3.94" (100mm)
11.81" (300mm)
Carbide Capability
✓ Zero cobalt depletion
✓ Zero cobalt depletion
✓ Cobalt depletion reduced
Extended Submersion
✓ Days/weeks
✓ Days/weeks
✓ Limited duration
Auto Wire Threading
✓ Standard
✓ Standard
○ Optional
Surface Finish Quality
Excellent
Exceptional
Good
Overburn
Minimal
Ultra-minimal
Moderate
Lights-Out Operation
✓ Ideal
✓ Ideal
○ Limited
Precision Level
Ultra-Precision
Nano-Precision
High-Precision
Min. Drive Unit
Standard
0.01μm (10 nanometers)
Standard
Drive Technology
Linear Motor
Ceramic Air Slider + Linear Motor
Linear Motor
10-Year Positioning Guarantee
✓
✓
✗
Taper Capability
±15°
±6°
±15°
Best For
Carbide dies, precision parts, lights-out ops
Ultimate precision, nano-level accuracy, micro-machining
General precision work

✓ = Standard Feature/Capability
○ = Limited or Optional
✗ = Not Available/Not Recommended

How the AX350L compares

Features
Sodick AX350L (Oil)
Sodick EXC100L+ (Oil)
Other Oil EDMs (Other Brands)
Dielectric Type
Oil
Oil
Oil
X-Axis Travel
13.78" (350mm)
3.94" (100mm)
11.81" (300mm)
Carbide Capability
✓ Zero cobalt depletion
✓ Zero cobalt depletion
✓ Cobalt depletion reduced
Extended Submersion
✓ Days/weeks
✓ Days/weeks
✓ Limited duration
Auto Wire Threading
✓ Standard
✓ Standard
○ Optional
Surface Finish Quality
Excellent
Exceptional
Good
Overburn
Minimal
Ultra-minimal
Moderate
Lights-Out Operation
✓ Ideal
✓ Ideal
○ Limited
Precision Level
Ultra-Precision
Nano-Precision
High-Precision
Min. Drive Unit
Standard
0.01μm (10 nanometers)
Standard
Drive Technology
Linear Motor
Ceramic Air Slider + Linear Motor
Linear Motor
10-Year Positioning Guarantee
✓
✓
✗
Taper Capability
±15°
±6°
±15°
Best For
Carbide dies, precision parts, larger work envelope
Ultimate precision, nano-level accuracy, medical/aerospace
General ultra-precision work

✓ = Standard Feature/Capability
○ = Limited or Optional
✗ = Not Available/Not Recommended

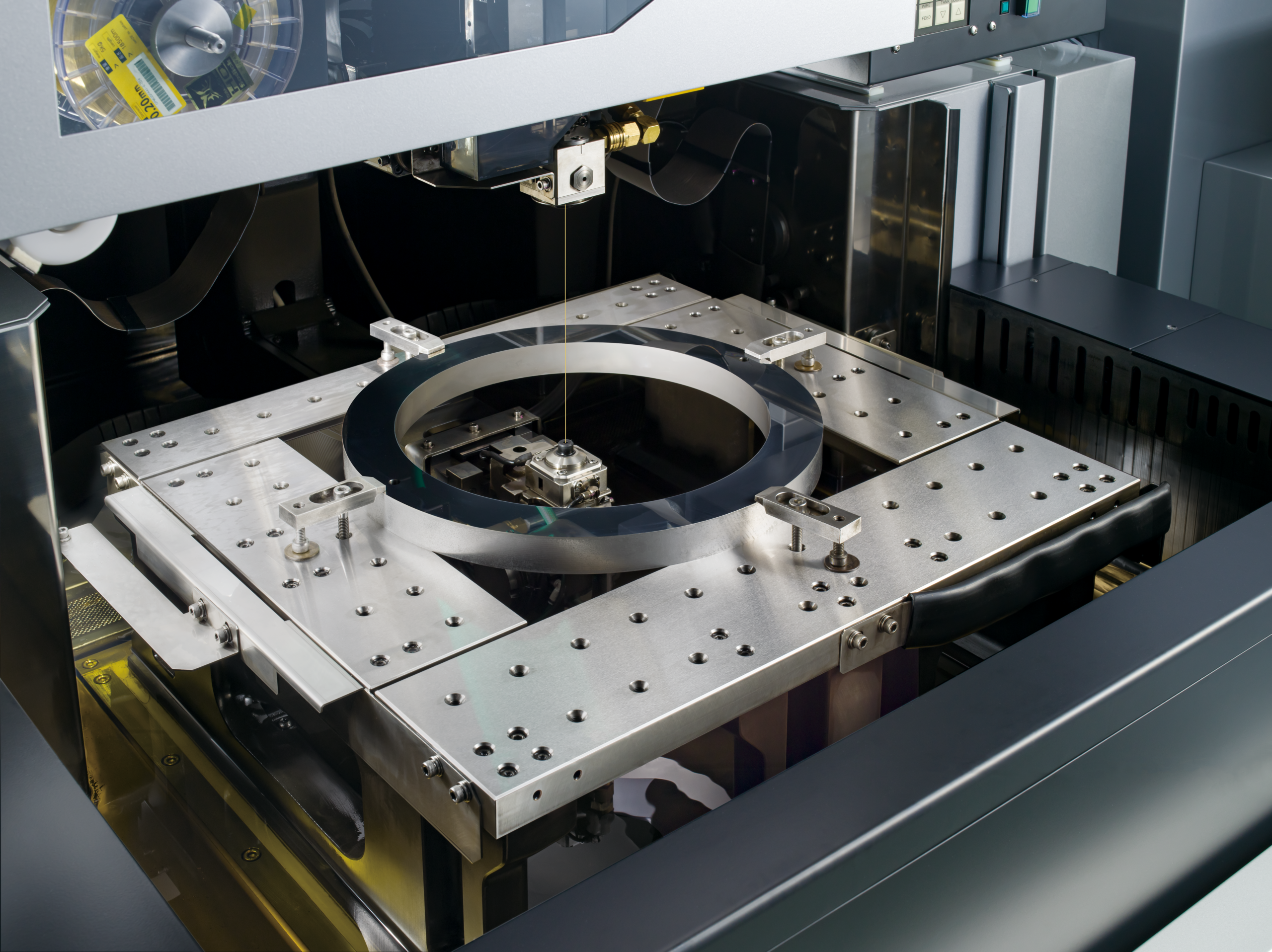

Samples

Sodick’s Linear Motor Driven Wire EDMs have no backlash and are vibration-free, this results in machining accuracy combined with a fine surface finish.

  • Material: Steel (SUS304)
  • Thickness: 5.905” (150 mm)
  • Surface Finish: 0.36 μm Ra
  • Accuracy: +/- 3 μm
  • Wire: .01” (.25 mm)
