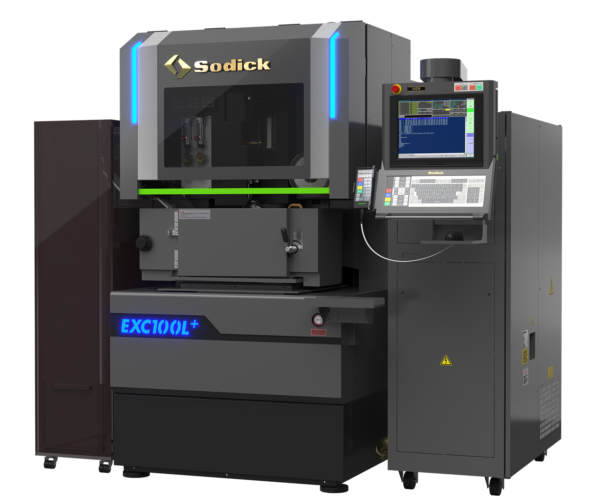

EXC100L+

The ultra-precision oil-dielectric wire EDM for carbide machining and superior surface quality.

Specs
X axis travel: 3.94″
Y axis travel: 4.72″
Z axis travel: 3.94″

Add to cart
Request A Quote

Description

Standard Features

  • World’s first ceramic air slider system (completely contact-less)
  • All-ceramic linear motor drive (X, Y, U, V axes)
  • Minimum drive unit: 0.01μm (10 nanometers)
  • High-resolution linear scale
  • LP2W power supply with 3D model integration
  • Automatic machining condition optimization
  • Low center-of-gravity gantry column system
  • High-precision dielectric cooling device (standard)
  • Advanced air circulation system
  • Wire diameter range: φ0.02mm ~ φ0.1mm
  • Wire tension control: 0.5N ~ 10N
  • Maximum wire feed speed: 250 mm/sec
  • Taper machining: ±6° (at 60mm plate thickness)
  • Travel distances: X-100mm, Y-120mm, Z-100mm, U×V-20×20mm
  • Distance from floor to table: 1,050mm

Available Options

  • LP20W NC power supply (up to 8 axes simultaneous control)
  • Extended warranty packages
  • Precision measurement systems
  • Automated loading systems
  • Additional control axes

Specifications

X-Axis Travel 3.94" (100 mm)
Y-Axis Travel 4.72" (120 mm)
Z-Axis Travel 3.94" (100 mm)
U v axis travel 0.79" × 0.79" (20 × 20 mm)
Max taper angle ±6° (at 2.36" / 60mm thickness)
Max workpiece size 5.91" × 5.91" × 2.36" (150 × 150 × 60 mm)
Max Workpiece Weight 22 lbs (10 kg, includes jigs)
Wire diameter φ0.0008" ~ φ0.004" (φ0.02 ~ φ0.1 mm)
Wire tension n 0.5 ~ 10 N
Max wire feed rate mm s 590 in/min (250 mm/sec)
Distance from Floor to Table 41.34" (1,050 mm)
Machine Tool Dimensions 88.58" × 90.16" × 78.35" (2,250 × 2,290 × 1,990 mm)Includes power supply and dielectric tank
Machine Installation 112.20" × 114.17" (2,850 × 2,900 mm)Includes maintenance space
Air Pressure 0.6 ~ 0.9 MPa
Machine Tool Weight 5,512 lbs (2,500 kg)Includes power supply and relay box
Total power input 3-phase 50/60Hz 9 kVA
CNC power supply unit LP2W specifications
Max. Machining Current 40 A
Power Requirement AC200/220V 50/60Hz
NC Unit Multi-tasking OS, K-SMC-LINK Method (SI-LINK)
User Memory Capacity – Editing 100,000 blocks
User Memory Capacity – Saving 30 MB
Memory Device CF Card, Dedicated USB Memory
Input Format Dedicated USB Memory, Touch Panel, Keyboard
Display Type 15 inch TFT-LCD
Character Set Alphanumeric and Symbols
Keyboard Standard 101-key, Function Key
Positioning Command Incremental and Absolute
Max. Input Command ±999999.999 / ±99999.9999 / ±9999.99999 (Switchable)
Machining Conditions Storage 1000 Conditions (C000 to C999)
Offset Settings Storage 1000 Conditions (H000 to H999)
Program Sequence Number N000000000 to N999999999
Number of Coordinates 60
Simultaneous Control Axes Max. 4 Axes*
Min. Input Command 0.001 µm
Min. Drive Unit 0.01 µm (X, Y, U, V axes)
Max. Feed Rate X, Y Axis: 94 in/min (2.4 m/min)
Z Axis: 78 in/min (2 m/min)
Position Detection Full Closed Loop (Linear scale)
Drive Mechanism Linear Motor (X, Y, U, V axes)
Graphics XY, YZ, XZ Plane, Graphics Drawing During Machining,
Machining Position, 3D, Zoom-in, Zoom-out, Rotation,
Background Graphics Drawing, etc.

*8 axes maximum for LP20W NC power supply unit (Additional control axes are optional)

Compensations Available:
  • Compensation by each axis for pitch error
  • Plane pitch error compensation
  • Torque/twisting compensation
  • Workpiece inclination compensation
  • Workpiece distortion compensation
Dielectric tank specifications
External Dimensions (W×D×H) 18.50″ × 38.58″ × 64.76″ (470 × 980 × 1,645 mm)
Weight (Dry) 992 lbs (450 kg)
Machining Fluid Oil – 30 Neutral Oil
Capacity 37 gal (140 L)
Filtration Method Replaceable Paper Filter
(External pressure single cylinder type)
Coil cooler (separately installed) specifications
Outer Dimensions (W×D×H) 14.17″ × 25.00″ × 33.86″ (360 × 635 × 860 mm)
Weight (Dry) 154 lbs (70 kg)
Coil Cooler Tank Volume 4 gal (15 L)
Coolant Mobil Velocite Oil No. 3

Achieve nanometer-level precision (0.01μm minimum drive unit) that enables you to meet the most demanding tolerance requirements other machines simply cannot achieve. When micron-level accuracy isn’t enough, the EXC100L+ delivers the nano-precision required for medical implants, aerospace components, and ultra-precision dies where failure is not an option.

The world’s first completely contact-less XY orthogonal table system using ceramic air sliders eliminates all mechanical wear forever. Zero friction means zero degradation—your machine maintains nanometer-level accuracy indefinitely without recalibration, delivering consistent part quality from day one through decades of operation.

LP2W power supply directly reads 3D models to automatically create optimal machining conditions, eliminating the guesswork of manual programming. Enable true lights-out operation while freeing your skilled operators for higher-value engineering tasks instead of babysitting machines or troubleshooting suboptimal conditions.

High-performance dielectric cooling and advanced air circulation system deliver stable high-precision machining the moment you power on. Eliminate costly warm-up periods that waste productive hours—start cutting parts immediately and maximize your daily throughput without compromising nanometer-level accuracy.

How the EXC100L+ compares

This Machine
Features
Sodick EXC100L+ (Oil)
Sodick AX350L (Oil)
Other Oil EDMs (Other Brands)
Dielectric Type
Oil
Oil
Oil
X-Axis Travel
3.94" (100mm)
13.78" (350mm)
11.81" (300mm)
Carbide Capability
✓ Zero cobalt depletion
✓ Zero cobalt depletion
✓ Cobalt depletion reduced
Extended Submersion
✓ Days/weeks
✓ Days/weeks
✓ Limited duration
Auto Wire Threading
✓ Standard
✓ Standard
○ Optional
Surface Finish Quality
Exceptional
Excellent
Good
Overburn
Ultra-minimal
Minimal
Moderate
Lights-Out Operation
✓ Ideal
✓ Ideal
○ Limited
Precision Level
Nano-Precision
Ultra-Precision
High-Precision
Min. Drive Unit
0.01μm (10 nanometers)
Standard
Standard
Drive Technology
Ceramic Air Slider + Linear Motor
Linear Motor
Linear Motor
10-Year Positioning Guarantee
✓
✓
✗
Taper Capability
±6°
±15°
±15°
Best For
Ultimate precision, nano-level accuracy, micro-machining
Carbide dies, precision parts, lights-out ops
General precision work

✓ = Standard Feature/Capability
○ = Limited or Optional
✗ = Not Available/Not Recommended

How the EXC100L+ compares

Features

Sodick EXC100L+ (Oil)
Sodick AX350L (Oil)
Other Oil EDMs (Other Brands)

Dielectric Type

Oil
Oil
Oil

X-Axis Travel

3.94" (100mm)
13.78" (350mm)
11.81" (300mm)

Carbide Capability

✓ Zero cobalt depletion
✓ Zero cobalt depletion
✓ Cobalt depletion reduced

Extended Submersion

✓ Days/weeks
✓ Days/weeks
✓ Limited duration

Auto Wire Threading

✓ Standard
✓ Standard
○ Optional

Surface Finish Quality

Exceptional
Excellent
Good

Overburn

Ultra-minimal
Minimal
Moderate

Lights-Out Operation

✓ Ideal
✓ Ideal
○ Limited

Precision Level

Nano-Precision
Ultra-Precision
High-Precision

Min. Drive Unit

0.01μm (10 nanometers)
Standard
Standard

Drive Technology

Ceramic Air Slider + Linear Motor
Linear Motor
Linear Motor

10-Year Positioning Guarantee

✓
✓
✗

Taper Capability

±6°
±15°
±15°

Best For

Ultimate precision, nano-level accuracy, medical/aerospace
Carbide dies, precision parts, larger work envelope
General ultra-precision work

✓ = Standard Feature/Capability
○ = Limited or Optional
✗ = Not Available/Not Recommended
