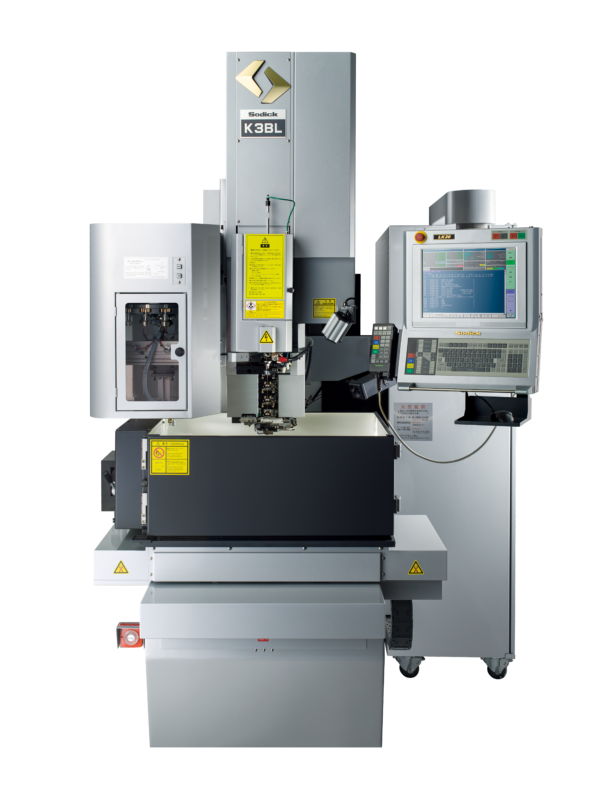

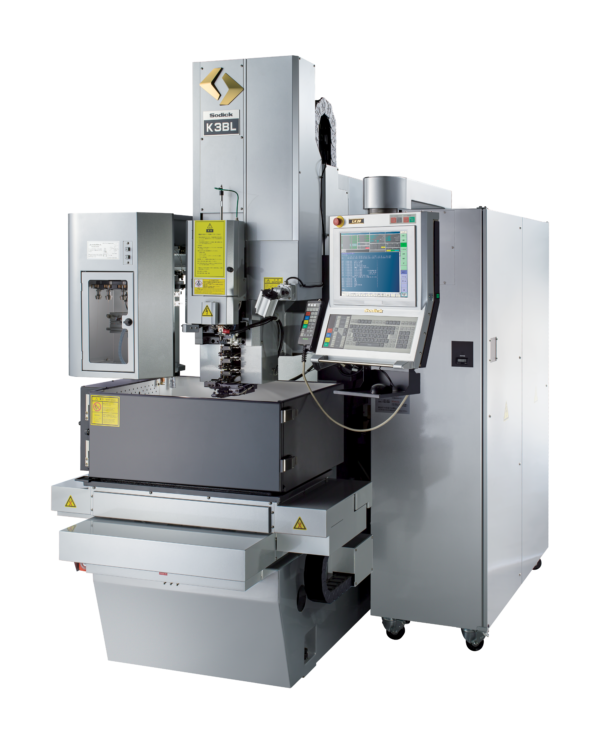

The K3BL is a high-precision small hole driller that delivers our widest machining range, spanning from 80 microns to 0.12”.

Specs

X-Travel: 11.81″ (300 mm)

Y-Travel: 7.87″ (200 mm)

Z-Travel: 11.81″ (300 mm)

Add to cart

Description

The K3BL is Sodick’s most versatile small hole EDM. It handles the widest electrode range of any machine in the K Series, from ultra-fine micro holes up to larger diameter drilling, so shops can take on more applications without additional equipment. Powered by Sodick’s rigid linear motor and the LN Assist control system, it delivers consistent precision across long production runs with automation options that keep the machine running with minimal operator involvement.

Features

Linear Motor Drive (Z-Axis Standard)
LN Assist Automated Programming System (Standard)
Ceramic Work Table

Options

18 Automatic Tool Changer (ATC)
15 ATC + Automatic Electrode Feeder (AEF)
Rotary Table
Signal Tower Type 3
UPS (Uninterruptible Power Supply)

Specifications

X-Axis Travel	11.81"
Y-Axis Travel	7.87"
Z-Axis Travel	11.81"
W-Axis Travel	9.84″
Electrode Diameter	ø.003″ ~ .118″
Work Table Size	23.62″ × 11.81″
Distance from Guide to Table	2.36″ ~ 12.20″
Machine Dimensions	44.49″ × 64.76″ × 94.69″
Maximum Workpiece Weight	661.4 lbs
Machine Weight	3,306.9 lbs
Air Pressure	0.5 ~ 0.6 MPa
Total power input	3 phase 200/220V, 0.75 kW
Dielectric Fluid	VITOL-V2 (oil-based)
Dielectric Tank Capacity	64.72 gallon
Linear Motor	Standard on Z Axis
Automation	ATC 18 / AEF + ATC 15
LN Assist	Standard Feature
Rotary Table	Available as an Option

Sodick’s rigid linear motor comes standard on the Z-axis of every K3BL. Unlike conventional ball screw drives, there are no mechanical parts wearing against each other, so accuracy remains consistent and maintenance stays minimal. The result is a machine that performs the same on day one as it does years down the line.

The K3BL covers a wider electrode range than any Small Hole EDM Sodick has ever built. From micro hole work at the finest tolerances to larger diameter drilling, it handles applications that would previously have required two separate machines. That means more flexibility and space for your shop floor.

The 18-position ATC changes electrodes automatically during cutting, so production keeps moving without an operator present.

The ceramic table provides high insulation, keeping electrical discharge energy focused exactly where it needs to be. It also runs cooler and lighter than cast iron, which reduces wear over time.

Samples

Micro-Hole, 200 Holes ø.00217″

Workpiece Material	WC/G5
Workpiece Thickness	.0197″
Electrode Material	Tungsten Rod ø.00118″
Dielectric	Oil
Hole Diameter	In .00217″–.00244″ , Out .00228″–.00256″
Cutting Time	2–5 min/hole
Machine Tool	K3BL

Micro-Hole, 10 Holes ø.00146″ (ø.037 mm)

Workpiece Material	WC/G5
Workpiece Thickness	.0118″
Electrode Material	Tungsten Rod ø.00079″
Dielectric	Oil
Hole Diameter	In .00146″–.00150″, Out .00150″–.00157″
Cutting Time	6–8 min/hole
Machine Tool	K3BL
