Description

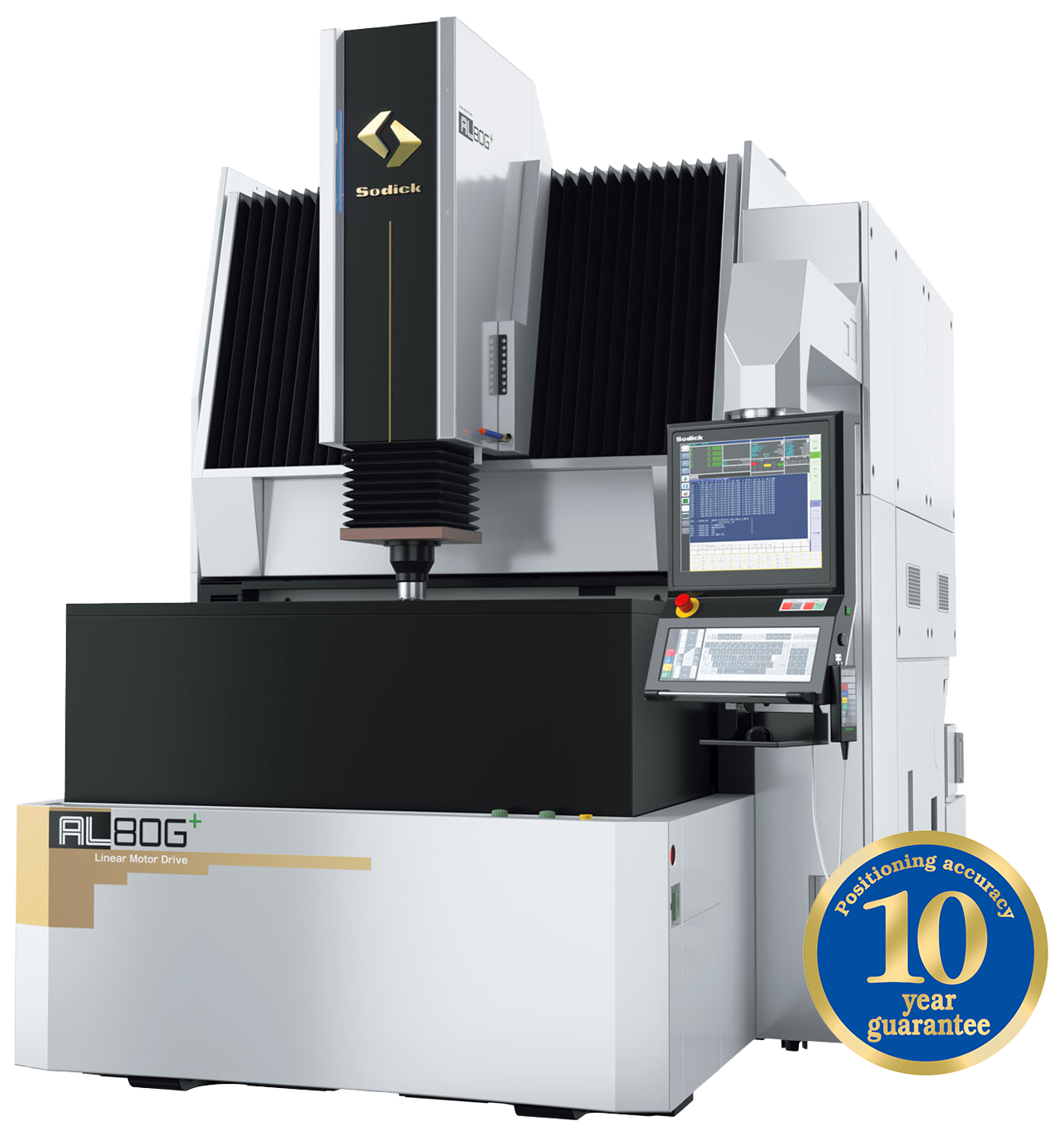

The AL80G, linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator is now available in the Sodick product range.
The new model features Sodick’s advanced technologies and latest innovation to realize unrivaled machining performance.
Features
- 10-year guarantee on positioning accuracy
- Linear Motor (X/Y/Z axis)
- Absolute Linear scale (X/Y/Z axis)
- Ceramic components
- Sodick Motion Controller
- Linear motor cooling unit
- Dielectric fluid cooling unit
- SVC circuit
- “SGF4” Nano-Wear Discharge Unit
- TMM4
- BSN4 finishing circuit
- SP controller
- 19″ TFT colour screen
- Intelligent Q³vic EDM
- Remote controller
- LN Professional AI software for optimum condition search
- 3-side Rise and fall woank
- Clamping chuck
- LAN interface
- USB port
- Totalising hour metre
- Work light
Options
- C-axis SEC10 (20 rpm)
- ATC Unit (6, 12, 16, 32-station)
- SCF72P High-precision rotary head (2000 rpm)
- 40A Booster
- Table Down 50 mm (Factory option)
- Oscilloscope
- Active Power Restart (UPS)
- Automation system
- 8-axis simultaneous control SP-E (Factory option)
- Custom Color
Specifications
| X - Axis Travel | 33.46″ (850 mm) |
| Y - Axis Travel | 20.47″ (520 mm) |
| Z - Axis Travel | 16.53″ (420 mm) |
| Table Dimensions W x D | 43.31" x 27.56" (1,100 x 700 mm) |
| Work Tank Dimensions W x D | 55.12" x 37.40" x 19.69" (1,400 x 950 x 500 mm) |
| Max. Workpiece Weight | 6,614 lb (3,000 kg) |
| Max. Weight of Electrode | 220 lb (100 kg) |
| Machine Dimensions | 84.65" x 129.92" x 114.17" (2,150 x 3,300 x 2,900 mm) |
| Machine Installation Dimensions W x D | 122.04" x 179.92" (3,100 x 4,570 mm) |
| Machine Weight | 21,605 lb (9,800 kg) |
| Total Power Input | 3-phases, 50/60 Hz, 17 KvA |
| Controlled Axes | 4 |
Rigid Linear Motor Drives
“AL series” are equipped with the in-house developed and manufactured linear motors, and demonstrates a high-speed and high response machining. Together with a highly rigid machine structure, the adoption of precision correction function “TH COM” (option) reduces the thermal displacement compared to conventional models.
Newly Developed SP Power Supply
The communication and throughput speed has improved in the newly developed “SP Power Supply” for the die-sinker EDM. The adoption of the optimum pulse control “TMM4” power supply improves the quality and speed of the overall electrical discharge machining range.
“Arc-less 4” Circuit
electrode wear, and realized various machining surface qualities from satin to mirror surfaces. It is also equipped with the AI machining condition adviser “LN Pro AI.”
Thermal Commit (TH COM)
Through sensing, the temperature of each component of the machine is precisely corrected and the Thermal Commit (TH COM) function, which provides various diagnostic functions, minimizes thermal displacement due to temperature changes in the installation environment and during high-speed driving.
